The Wavelength References Clarity Laser family locks laser emissions to molecular absorption lines. The instrument drives a semiconductor laser in a unique configuration that creates superb frequency stability traceable to a physical constant and thus forms a primary frequency standard. There are several configurations:

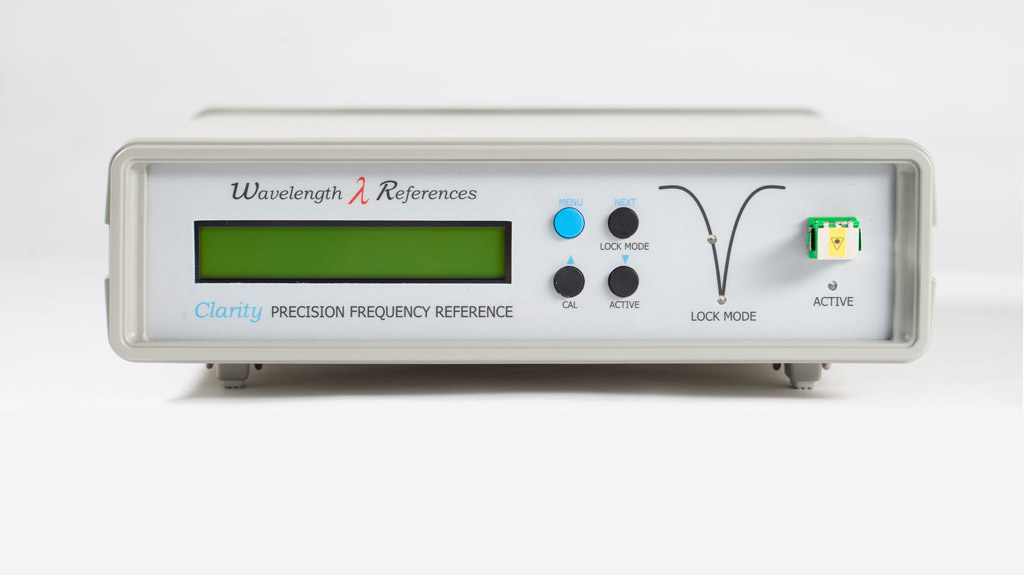

Clarity Precision Frequency Reference: PFR Series
These low cost benchtop lasers are designed to provide +/- 0.1pm absolute accuracy and stability over long-haul applications at a single wavelength or frequency. Standard wavelengths are 1530 and 1550 nm and other wavelengths are available upon request. Output power is 2mW nominal, single-mode and accepts SCAPC fiber (patchcords available).
Clarity PFR with linewidth narrowing: NLL Series
These lasers deliver all the benefits of the PFR Series lasers and include an additional Linewidth-Narrowing Mode. This mode takes advantage of the internal reference cell’s absorption line to reduce the laser diode’s linewidth. Output fiber is PM, SCAPC, with patchcords available. This laser has two power modes:
- HP: 25mW nominal output power, <150kHz linewidth. 1530 and 1550nm are standard, other wavelengths available
- LP: 2mW nominal output power, 50kHz linewidth. Currently not available.
You can use the product table below to purchase one of our standard models online or contact us with any custom requests.
